Fire Fighting Equipment

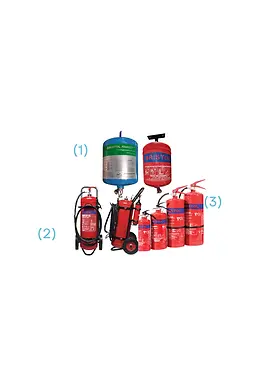

Fire Extinguishers

1.Automatic Fire Extinguishers

2.Mobile Fire Extinguishers

3.Portable Fire Extinguishers

Fire Cabinets

1.Fire Hoses

2.Fire Hose Reel

3.Single Cabinet

4.Double Vertical Cabinet

5.Double Horizontal Cabinet

6.Breeching Inlet Cabinet

Fire Valves

1.Outside Stem & Yoke.

2.Non Rising Stem.

3.Butterfly Valve.

4. Check Valve.

5.Test and Drain Valve.

6.Angle Valve.

7.Landing Valves.

8.Breeching Inlet.

Fire Pump

Bristol

End Suction

Description:

Designed according to NFPA 20 for firefighting applications. This pump is designed with latest technology and has premium components for easy maintenance and absolute efficiency.

Features:

Available in electric motor driven or engine driven configuration

UL File No. : EX16459
Dynamically balanced impellers
FM Class 1319

Performance Range:

Capacity : From 50 GPM up to 1000 GPM
Head:From50MTRupto209MTR

Split Case

The Bristol Split Case Pump is a single-stage, non-self-priming centrifugal volute pump with radial suction and discharge ports. It features a horizontal shaft, with the impeller placed in the middle. The split-case design allows for easy dismantling of the casing without disturbing the motor or pipework, facilitating maintenance and part replacement.

Features:
* Double Suction
* Low NPSH
* Reduced Axial & Radial Load
* Improved Efficiency
* Easy Maintenance: Bearings and packing glands can be replaced without removing the top casing.
* UL File No. EX16089
* FM Class 1311 Compliance
Performance Range:
* Capacity: 300 GPM to 3000 GPM
* Head: 50m to 209m

Vertical Turbine

The Bristol vertical turbine centrifugal pump is designed per NFPA 20 and is ideal for underground water sources where the water level is below ground. The pump’s impeller remains submerged, supported by a column pipe.

Features:
* NFPA 20 & UL 448 Compliance
* Materials: Cast iron construction, bronze fittings, Sealing: Packing with flushing
* Modular Design: Flexible for easy pump selection
Pre-engineered Components
* Space-Saver.
* Static Suction Lift: Allows use with below-ground water sources
* Water-Lubricated Bearings
* Stuffing Box (Gland): Bronze to secure packing
* Bolted Bowl: Easy disassembly
* Dynamic Balanced Impellers: Secured with steel locking collets

Performance Range:
* Capacity: 200 GPM to 1500 GPM
* Head: 50m to 210m

Packaged Fire Fighting System

Bristol offers fully engineered fire pump systems, from single to multi-pump setups, mounted on a single skid with all components included.

Features:
* Single Skid Design: Compact, with load calculations and lifting points.
* NFPA 20 Compliance: Meets industry safety standards.
* Custom Engineering: Tailored to your specifications.
* Quick Setup: Power and pipe connections made on-site.
* Factory Tested: Meets stringent international standards.
* Ergonomic Design: Easy access to all components.
* Complete Piping: Includes all necessary lines per NFPA requirements.
Operating Range:
* Flow: Up to 5500 GPM
* Pressure: 40m to 200m
* UL/FM Listed Range:
1. Flow: Up to 3000 GPM
2. Pressure: 40m to 200m

Containerized Fire Pump

Bristol offers single to multi-pump systems in containerized enclosures or custom-built pump houses, providing a complete firefighting solution.

Features:
* Fire-Rated Enclosures: Weather-proof and customizable.
* NFPA 20 Compliance: Engineered to meet safety standards.
* Quick Installation: Connect power and pipes on-site for immediate use.
* Factory Tested: Meets stringent international standards.
* Ergonomic Design: Easy access to instruments, valves, and fittings.
* Durable Construction: GRP-coated floors and insulated walls/roofs.
* Complete Piping: Includes all required lines, designed per NFPA standards.
Operating Range:
* Flow: Up to 5500 GPM
* Pressure: 40m to 200m
* UL/FM Listed Range:
1. Flow: Up to 3000 GPM
2. Pressure: 40m to 200m
